BKH高压球阀它具有旋转90度的动作，旋塞体为球体，有圆形通孔或通道通过其轴线。球阀在管路中主要用来做切断、分配和改变介质的流动方向，它只需要用旋转90度的操作和很小的转动力矩就能关闭严密。球阀适宜做开关、切断阀使用，但近来的发展已将球阀设计成使它具有节流和控制流量之用，如V型球阀。

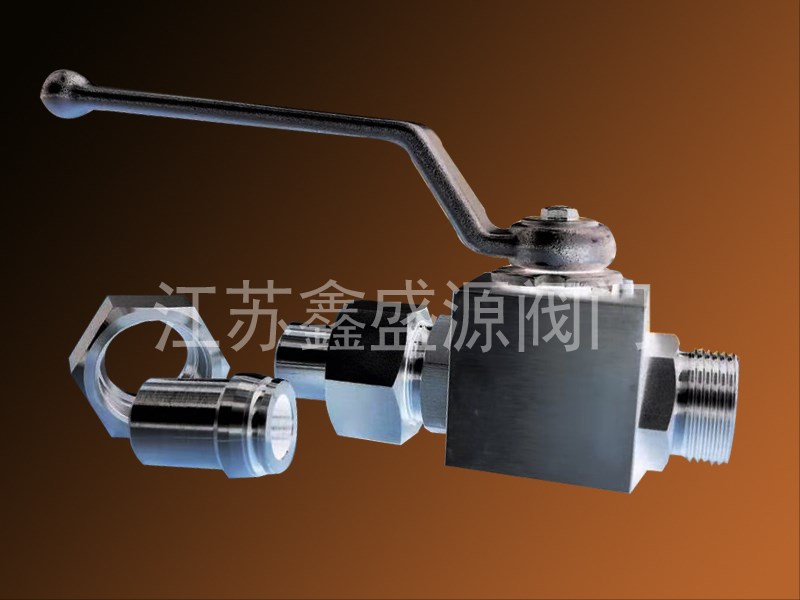

      BKH高压球阀正常连接方式有内螺纹式 卡套式和活接焊接式三种连接方式。BKH高压球阀本身结构紧凑，密封稳定，结构简单，维修方便，密封面与球面常在闭合状态，不易被介质冲蚀，易于操作和维修，适用于水、溶剂、酸和天然气等一般工作介质，而且还适用于工作条件恶劣的介质，如氧气、过氧化氢、甲烷和乙烯等，在各行业得到广泛的应用。球阀阀体可以是整体的，也可以是组合式的。

BKH高压球阀优点：

      1．流体阻力小，全通径的球阀基本没有流阻。

      2．结构简单、体积小、重量轻。

      3．紧密度好。它有两个密封面，而且目前球阀的密封面材料广泛使用各种塑料，密封性好，能实现完全密封。在真空系统中也已广泛使用。

      4．操作方便，开闭迅速，从全开到全关只要旋转90°，便于远距离的控制。

      5．维修方便，球阀结构简单，密封圈一般都是活动的，拆卸更换都比较方便。

      6．在全开或全闭时，球体和阀座的密封面与介质隔离，介质通过时，不会引起阀门密封面的侵蚀。

      7．适用范围广，通径从小到几毫米，大到几米，从高真空至高压力都可应用。

      8．由于球阀在启闭过程中有擦拭性，所以可用于带悬浮固体颗粒的介质中。

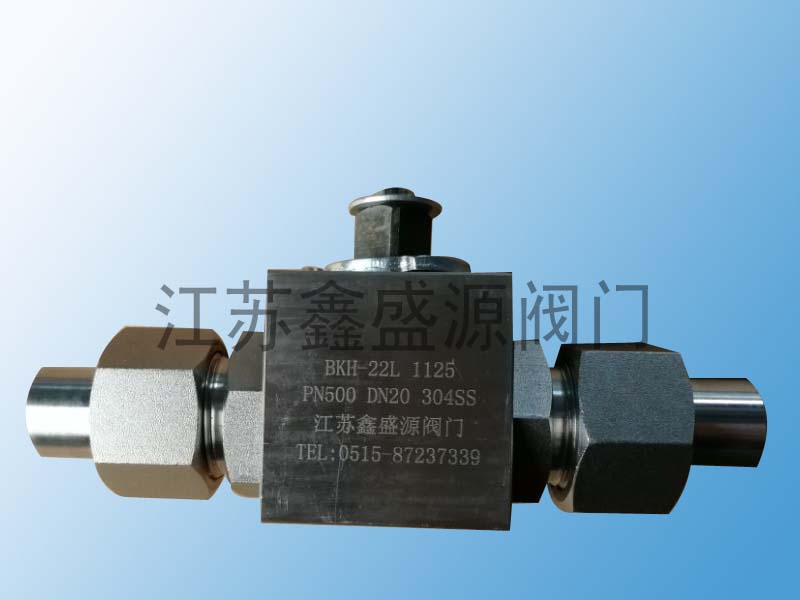

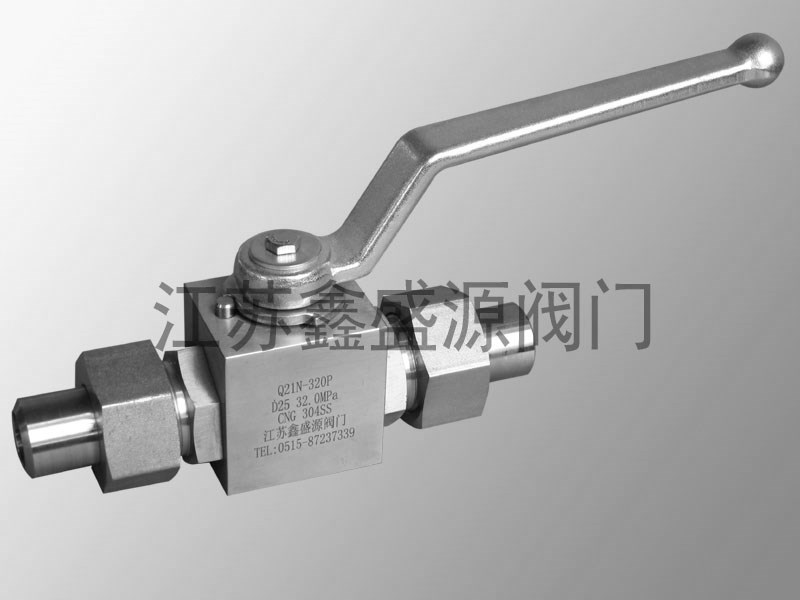

BKH高压球阀

BKH高压球阀的结构与原理

结构组成：主要由球体、阀座、密封圈、阀杆等部件构成 。

工作原理：基于球体旋转来控制介质流通和截断。阀门关闭时，球体通过阀座密封圈与阀座密封防止泄漏；开启时，介质通过球体通道流通 。

 BKH高压球阀特点- 密封性能好：采用全金属结构及球体与阀座的密封结构，如密封面使用聚四氟乙烯等材料，耐高压、高温、强腐蚀，能有效阻止介质泄漏 。

BKH高压球阀- 耐磨损：密封面采用耐磨材料，如钨钼合金等，可长期使用而不易磨损 。

BKH高压球阀- 操作方便：可配备手动操作装置或电动/气动执行器，操作简便，开启和关闭迅速 。

BKH高压球阀- 安全性高：采用防火、防爆措施，能让生产安全 。

BKH高压球阀主要参数

公称通径：DN6-DN40，部分产品为DN4-DN25或1/4″-2″等。

公称压力：31MPa-50MPa，部分产品可达40MPa甚至更高。

工作温度：一般为-25℃-+100℃，也有产品能在-45℃-+200℃等更宽温度范围工作。

阀体材质：常见有A105碳钢、304不锈钢、316不锈钢等。

BKH高压球阀连接与驱动方式

BKH高压球阀连接方式：有法兰连接、NPT螺纹连接、英制直管螺纹（G螺纹）、公制螺纹平面密封、公制螺纹24°锥面（DIN2353轻系列、重系列）等，还可配焊接式或卡套式使用 。

驱动方式：主要为手动，也可选择电动或气动驱动 。

BKH高压球阀应用领域

石油化工：用于油气开采、输送、储存过程中的高压管道系统，控制各种油、气、化工原料等介质的流动。

冶金行业：在钢铁冶金等领域，用于控制高温、高压的流体介质，如高炉煤气、蒸汽等的输送和截断。

电力行业：适用于火力发电、核电等的高压管道系统，如蒸汽、冷却水等介质的控制。

Here is an introduction to BKH high-pressure ball valves:

Structure Principle

- Structural Composition: Mainly composed of components such as the ball, valve seat, sealing ring, valve stem.

- Working Principle: It controls the circulation cutoff of media through the rotation of the ball. When the valve is closed, the ball forms a seal with the valve seat via the valve seat sealing ring to prevent leakage; when opened, the medium flows through the ball's channel.

 Features- Excellent Sealing Performance: Adopts an all-metal structure a sealing structure between the ball the valve seat. For example, the sealing surface uses materials like polytetrafluoroethylene (PTFE), which is resistant to high pressure, high temperature, strong corrosion, effectively preventing medium leakage.

- Wear Resistance: The sealing surface is made of wear-resistant materials such as tungsten-molybdenum alloy, allowing for long-term use without easy wear.

- Easy Operation: Can be equipped with manual operating devices electric/pneumatic actuators, featuring simple operation quick opening closing.

- High Safety: Adopts advanced fire explosion prevention measures to ensure production safety.

Main Parameters

- Nominal Diameter: DN6-DN40, with some products being DN4-DN25 1/4″-2″, etc.

- Nominal Pressure: 31MPa-50MPa, some products can reach 40MPa even higher.

- Operating Temperature: Generally -25℃-+100℃, some products can work in a wider temperature range such as -45℃-+200℃.

- Valve Body Material: Common materials include A105 carbon steel, 304 stainless steel, 316 stainless steel, etc.

Connection Driving Methods

- Connection Methods: Include flange connection, NPT thread connection, British straight thread (G thread), metric thread flat seal, metric thread 24° cone (DIN2353 light series, heavy series), etc. It can also be used with welded ferrule-type connections.

- Driving Methods: Mainly manual, electric pneumatic driving can also be selected.

Application Fields

- Petrochemical Industry: Used in high-pressure pipeline systems during oil gas extraction, transportation, storage to control the flow of various media such as oil, gas, chemical raw materials.

- Metallurgical Industry: In fields like iron steel metallurgy, it is used to control high-temperature high-pressure fluid media, such as the transportation cutoff of blast furnace gas steam.

- Power Industry: Suitable for high-pressure pipeline systems in thermal power generation, nuclear power, etc., such as controlling media like steam cooling water.
