KHB3K三通高压球阀

KHB3K三通高压球阀

  • 型号:KHB3K
  • 口径:DN6~DN50
  • 压力:PN210~PN420
  • 材质:45# 304SS
  • 产品概述

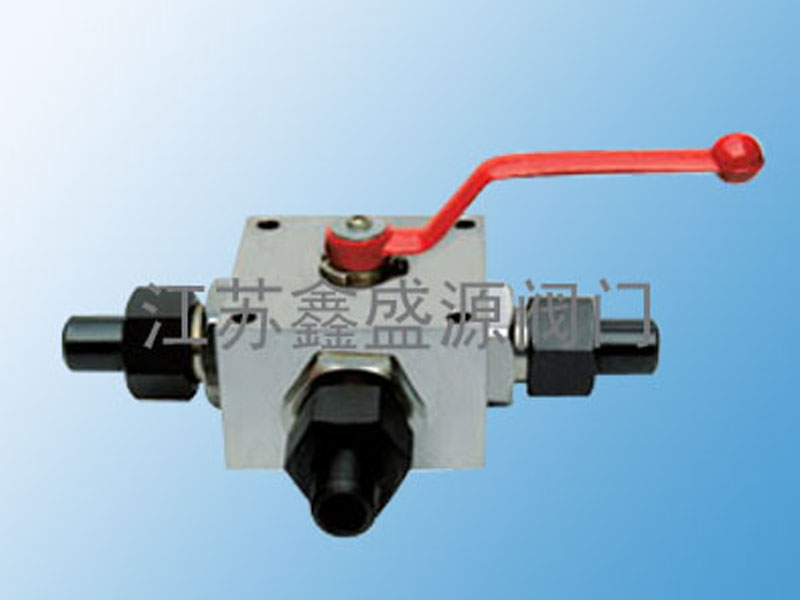

KHB3K三通高压球阀

KHB3K(BK3)系列二位三通球阀(QJH KHB

KHB3K(BK3)系列二位三通球阀(QJH KHB3K三通高压球阀):

图形符号:

KHB3K三通高压球阀型号说明:

       ① 系列代号:KHB3K(BK3)系列二位三通球阀
      ② 连接代号:M** 、G** 、 **LR 、**SR、PT**、NPT**
      ③ 阀体材料:1-钢、2-不锈钢
      ④ 球体材料:1-钢、2-黄铜、3-不锈钢

      ⑤ 工作温度:1、-25~+100℃ 2、-30~+170℃
      ⑥ 其他密封:2-丁腈橡胶、4-氟橡胶
      ⑦ 手柄形式:01-铝质直柄02-铝质曲柄03-铸锌直柄04-铸锌曲柄05-钢质直柄06-钢质曲柄09-不带手柄
      ⑧ 设计序号:由生产商定
      ⑨ 表面处理:空白-磷化、G-电镀黄锌

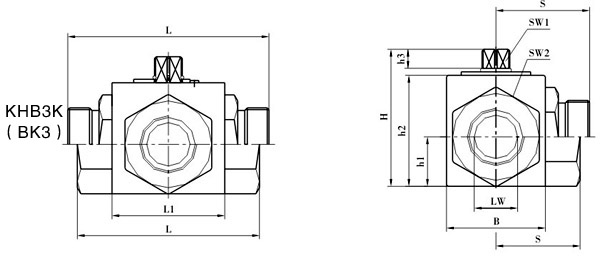

KHB3K三通高压球阀外形尺寸:

KHB3K三通高压球阀尺寸表:

KHB3K三通高压球阀连接口略图:

简略型号PN(bar)DNLWRAd1iLL1BHh1h2h3SW1SW2S
KHB3K-M16×1.5500060611M16×1.5116940264513.5338092227.5
KHB3K-M22×1.5500080816M22×1.51276423249163610092733
KHB3K-M27×1.5500101020M27×1.51276423249163610092733
KHB3K-M30×1.5400161524M30×1.51384483861194511093237
KHB3K-M36×2315202030M36×215103604870255511124145.5
KHB3K-M42×2315252335M42×21811665577928.56411125054
KHB3K-M52×2315323240M52×220149847510137.58412146070
KHB3K-M60×2315403845M60×222174918511242.59512147084

简略型号PN(bar)DNLWRAd1iLL1BHh1h2h3SW1SW2S
KHB3K-G1/85000406G1/8106940264513.5338092235
KHB3K-G1/45000606G1/4146940264513.5338092235
KHB3K-G3/85001010G3/81472423249163610092736
KHB3K-G1/25001312G1/21683483549174010093040
KHB3K-G1/24001615G1/21683483861194511093242
KHB3K-G3/43152020G3/41895604870255511124149
KHB3K-G13152525G12111365577928.56411125056.5
KHB3K-G 11/43153232G 11/422110847510137.58412146062.5
KHB3K-G 11/23154038G 11/224130918511242.59512147061
KHB3K-G23155048G22614010010513152.511212148062.5

简略型号PN(bar)DNLWRAd1iLL1BHh1h2h3SW1SW2S
KHB3K-NPT1/85000406NPT1/8106940264513.5338092235
KHB3K-NPT1/45000606NPT1/4146940264513.5338092235
KHB3K-NPT3/85001010NPT3/81472423249163610092736
KHB3K-NPT1/25001312NPT1/21683483549174010093040
KHB3K-NPT1/24001615NPT1/21683483861194511093242
KHB3K-NPT3/43152020NPT3/41895604870255511124149
KHB3K-NPT13152525NPT12111365577928.56411125056.5
KHB3K-NPT 11/43153232NPT 11/422110847510137.58412146062.5
KHB3K-NPT 11/23154038NPT 11/224130918511242.59512147061
KHB3K-NPT23155048NPT22614010010513152.511212148062.5

简略型号PN(bar)DNLWRAd1iLL1BHh1h2h3SW1SW2S
KHB3K-06LR500040406M12×1.5106740264513.5338092233.5
KHB3K-08LR500060608M14×1.5106740264513.5338092233.5
KHB3K-10LR500080810M16×1.51174423249163610092737
KHB3K-12LR500101012M18×1.51174423249163610092737
KHB3K-15LR500131215M22×1.51282483553174010093040
KHB3K-15LR500121215M22×1.51282483861194511093240
KHB3K-18LR500131218M26×1.51282483553174010093042
KHB3K-18LR400161518M26×1.51282483861194511093242
KHB3K-22LR315201922M30×214101604870255511124152
KHB3K-28LR315252428M36×21410865577928.56411125054
KHB3K-35LR315323035M45×216141847510137.58412146066
KHB3K-42LR315403642M52×216162918511242.59512147078

简略型号PN(bar)DNLWRAd1iLL1BHh1h2h3SW1SW2S
KHB3K-08SR500040508M16×1.5127340264513.5338092237
KHB3K-10SR500060610M18×1.5127340264513.5338092237

















3K三通高压球阀):

KHB3K三通高压球阀图形符号:

KHB3K三通高压球阀型号说明:

  ① 系列代号:KHB3K(BK3)系列二位三通球阀
  ② 连接代号:M** 、G** 、 **LR 、**SR、PT**、NPT**
  ③ 阀体材料:1-钢、2-不锈钢
  ④ 球体材料:1-钢、2-黄铜、3-不锈钢
  ⑤ 工作温度:1、-25~+100℃ 2、-30~+170℃
  ⑥ 其他密封:2-丁腈橡胶、4-氟橡胶
  ⑦ 手柄形式:01-铝质直柄02-铝质曲柄03-铸锌直柄04-铸锌曲柄05-钢质直柄06-钢质曲柄09-不带手柄
  ⑧ 设计序号:由生产商定
  ⑨ 表面处理:空白-磷化、G-电镀黄锌

KHB3K三通高压球阀外形尺寸:

KHB3K三通高压球阀尺寸表:

KHB3K三通高压球阀连接口略图:

简略型号PN(bar)DNLWRAd1iLL1BHh1h2h3SW1SW2S
KHB3K-M16×1.5500060611M16×1.5116940264513.5338092227.5
KHB3K-M22×1.5500080816M22×1.51276423249163610092733
KHB3K-M27×1.5500101020M27×1.51276423249163610092733
KHB3K-M30×1.5400161524M30×1.51384483861194511093237
KHB3K-M36×2315202030M36×215103604870255511124145.5
KHB3K-M42×2315252335M42×21811665577928.56411125054
KHB3K-M52×2315323240M52×220149847510137.58412146070
KHB3K-M60×2315403845M60×222174918511242.59512147084

简略型号PN(bar)DNLWRAd1iLL1BHh1h2h3SW1SW2S
KHB3K-G1/85000406G1/8106940264513.5338092235
KHB3K-G1/45000606G1/4146940264513.5338092235
KHB3K-G3/85001010G3/81472423249163610092736
KHB3K-G1/25001312G1/21683483549174010093040
KHB3K-G1/24001615G1/21683483861194511093242
KHB3K-G3/43152020G3/41895604870255511124149
KHB3K-G13152525G12111365577928.56411125056.5
KHB3K-G 11/43153232G 11/422110847510137.58412146062.5
KHB3K-G 11/23154038G 11/224130918511242.59512147061
KHB3K-G23155048G22614010010513152.511212148062.5

简略型号PN(bar)DNLWRAd1iLL1BHh1h2h3SW1SW2S
KHB3K-NPT1/85000406NPT1/8106940264513.5338092235
KHB3K-NPT1/45000606NPT1/4146940264513.5338092235
KHB3K-NPT3/85001010NPT3/81472423249163610092736
KHB3K-NPT1/25001312NPT1/21683483549174010093040
KHB3K-NPT1/24001615NPT1/21683483861194511093242
KHB3K-NPT3/43152020NPT3/41895604870255511124149
KHB3K-NPT13152525NPT12111365577928.56411125056.5
KHB3K-NPT 11/43153232NPT 11/422110847510137.58412146062.5
KHB3K-NPT 11/23154038NPT 11/224130918511242.59512147061
KHB3K-NPT23155048NPT22614010010513152.511212148062.5

简略型号PN(bar)DNLWRAd1iLL1BHh1h2h3SW1SW2S
KHB3K-06LR500040406M12×1.5106740264513.5338092233.5
KHB3K-08LR500060608M14×1.5106740264513.5338092233.5
KHB3K-10LR500080810M16×1.51174423249163610092737
KHB3K-12LR500101012M18×1.51174423249163610092737
KHB3K-15LR500131215M22×1.51282483553174010093040
KHB3K-15LR500121215M22×1.51282483861194511093240
KHB3K-18LR500131218M26×1.51282483553174010093042
KHB3K-18LR400161518M26×1.51282483861194511093242
KHB3K-22LR315201922M30×214101604870255511124152
KHB3K-28LR315252428M36×21410865577928.56411125054
KHB3K-35LR315323035M45×216141847510137.58412146066
KHB3K-42LR315403642M52×216162918511242.59512147078

简略型号PN(bar)DNLWRAd1iLL1BHh1h2h3SW1SW2S
KHB3K-08SR500040508M16×1.5127340264513.5338092237
KHB3K-10SR500060610M18×1.5127340264513.5338092237
KHB3K-12SR500080812M20×1.51276423249163610092738
KHB3K-14SR500101014M22×1.51480423249163610092740
KHB3K-16SR500131216M24×1.51486483553174010093044
KHB3K-16SR500121216M24×1.51486483861194511093243.5
KHB3K-20SR500131220M30×21690483553174010093044
KHB3K-20SR400161520M30×21690483861194511093245.5
KHB3K-25SR315202025M36×218109604870255511124156
KHB3K-30SR315252530M42×22012065577928.56411125060
KHB3K-38SR315323038M52×222153847510137.58412146072
