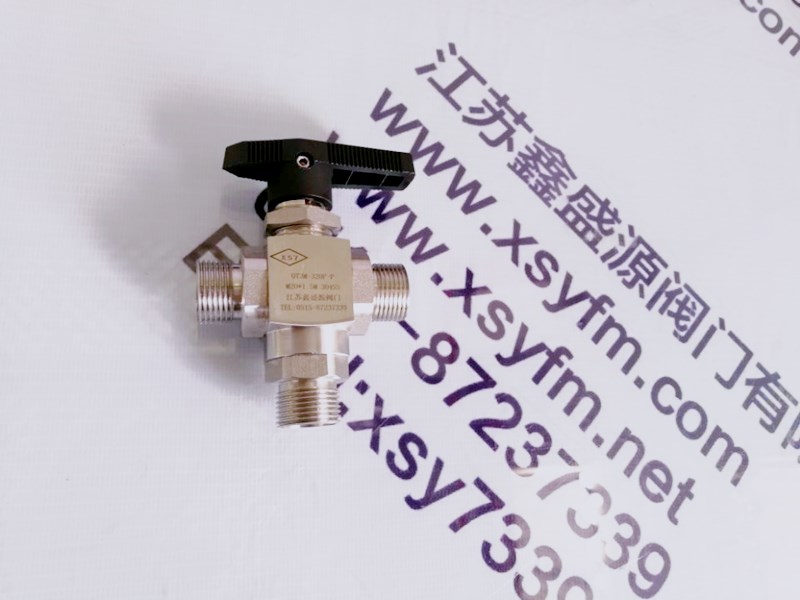

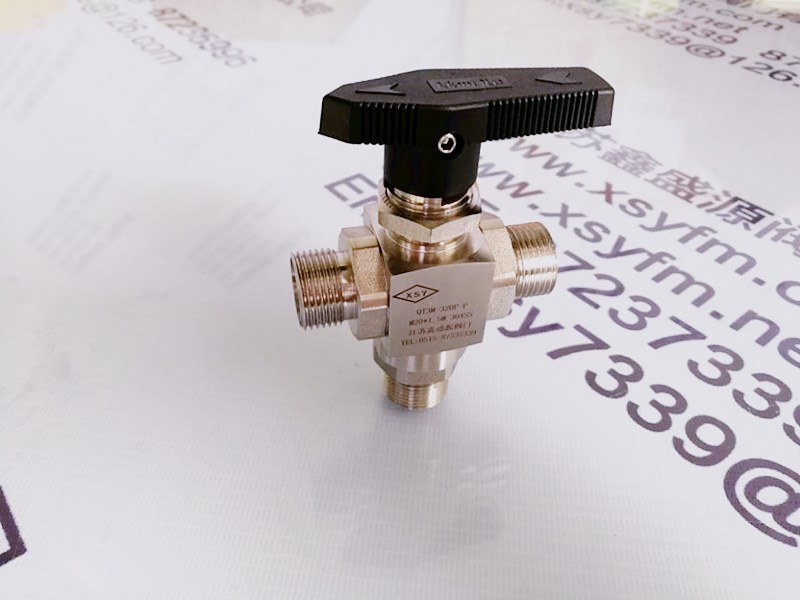

QT3M仪表三通球阀在结构上分为T型和L型2种换向方式。这种阀的原理是以改变管线内的介质流向为目的，实现管道互通。由本厂自主研发生产的【球阀】质量、价格合理、售后服务完善。『内螺纹三通球阀』适用于各种轻重工业及楼宇管道。TQ3 LQ3三通内螺纹球阀广泛应用于：化工、石化、石油、造纸、采矿、电力、液化气、食品、制药、给排水、市政、机械设备配套、电子工业，城建等领域。

QT3M仪表三通球阀特点：

  (1）流体阻力小，全通径的球阀基本没有流阻。
 （2）结构简单、体积小、重量轻。
 （3）紧密稳定。它有两个密封面，而且目前球阀的密封面材料广泛使用各种塑料，密封性好，能实现完全密封。在真空系统中也已广泛使用。
  (4）操作方便，开闭迅速，从全开到全关只要旋转90°，便于远距离的控制。
 （5）维修方便，球阀结构简单，密封圈一般都是活动的，拆卸更换都比较方便。
 （6）在全开或全闭时，球体和阀座的密封面与介质隔离，介质通过时，不会引起阀门密封面的侵蚀。
 （7）适用范围广，通径从小到几毫米，大到几米，从高真空至高压力都可应用。
 （8）由于球阀在启闭过程中有擦拭性，所以可用于带悬浮固体颗粒的介质中。

QT3M仪表三通球阀纹技术参数：

  ①公称压力：2.5MPa 4.0MPa 6.4MPa 10.0MPa 16.0MPa 32.0MPa 42.0MPa 50.0MPa 80.0MPa
  ②适用稳定范围：-20～232℃～350℃
  ③适用介质：水、油、气及某些腐蚀性液体（W.O.G）

仪表三通球阀产品概述

仪表三通球阀是一种用于控制流体流向或切换流道的阀门，在工业领域应用广泛。以下是其产品概述 ：

 仪表三通球阀 - 结构特点：通常采用一体化结构，有4面阀座密封型式。阀体可由精密铸造或锻造而成，阀芯一般为O型，常见材质有不锈钢等，阀座密封材料有聚四氟乙烯（PTFE）、对位聚苯（PPL）等。

仪表三通球阀 - 工作原理：通过旋转球体来实现阀门的开闭和流体流向控制，球体绕阀体中心线旋转90°即可完成全开或全关，L型流道可连接相互正交的两条管道，实现两进一出的流向切换；T型流道能使三条正交的管道相互联通或切断第三条通道，起分流、合流作用。

仪表三通球阀 - 性能优势：具有流体阻力小、密封性能好、操作便捷等特点。可适应高温、高压及腐蚀性介质等多种工况，能实现双向密封，且维护简单，仅需更换密封件即可延长使用寿命 。

仪表三通球阀 - 应用领域：广泛应用于石油、化工、制药、食品、暖通空调等行业，可用于油气输送管线中切换介质流向、反应釜进料系统的多通道切换、调配罐的原料混合控制、冷热水系统中平衡支路流量等场景 。

 Product Overview of Instrument Three - way Ball Valve

 The instrument three - way ball valve is a kind of valve used to control the flow direction of fluid switch the flow channel, which is widely used in the industrial field. The product overview is as follows:

 The instrument three - Structural Features: It usually adopts an integrated structure with a four - faced seat sealing type. The valve body can be made by precision casting forging. The valve core is generally O - shaped, common materials include stainless steel, etc. The sealing materials of the valve seat include polytetrafluoroethylene (PTFE), polyphenylene (PPL), etc.

The instrument three - Working Principle: The opening closing of the valve the control of fluid flow direction are realized by rotating the ball. The ball rotates 90° around the center line of the valve body to complete full - open full - close. The L - type flow channel can connect two orthogonal pipelines to realize the flow direction switching of two - in - one - out. The T - type flow channel can make three orthogonal pipelines communicate with each other cut off the third channel, playing the role of shunting converging.

The instrument three - Performance Advantages: It has the characteristics of small fluid resistance, excellent sealing performance, convenient efficient operation. It can adapt to various working conditions such as high temperature, high pressure corrosive media, can achieve bidirectional sealing. Moreover, it is easy to maintain, the service life can be extended only by replacing the sealing parts.

The instrument three - Application Fields: It is widely used in petroleum, chemical, pharmaceutical, food, HVAC other industries. It can be used in scenarios such as switching the flow direction of media in oil gas transmission pipelines, multi - channel switching of reactor feed systems, raw material mixing control of blending tanks, balancing the flow of branch circuits in cold hot water systems.
