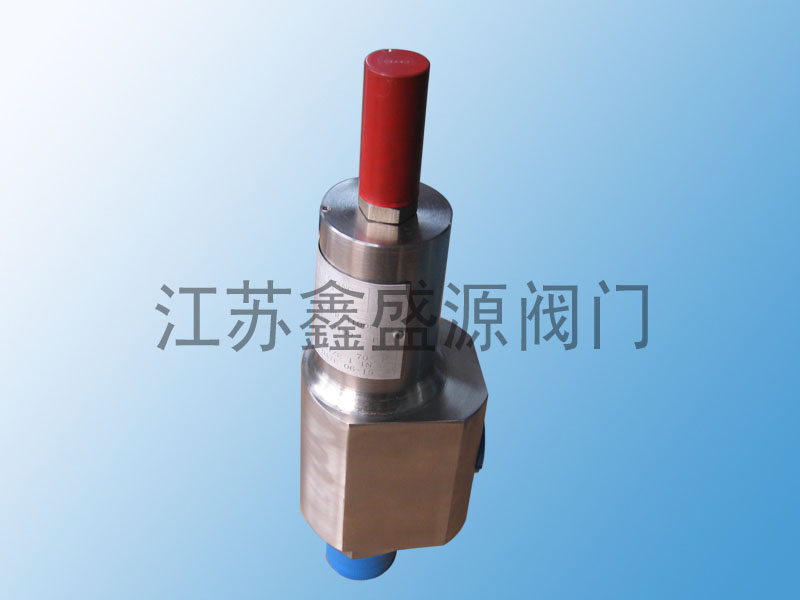

压缩机高压安全阀

压缩机高压安全阀

压缩机高压安全阀是压缩机组系统中至关重要的超压保护装置，专门用于保护压缩机及其下游设备免受因异常工况导致的压力超高危害。当压缩机出口压力超过允许设定值时，阀门立即自动开启泄压，待压力恢复正常后自动关闭，确保压缩系统安全稳定运行。

压缩机高压安全阀压缩机高压安全阀核心特点：

精准压力控制：准确的弹簧加载设计确保开启压力偏差≤±3%，满足压缩机系统精细压力保护需求

压缩机高压安全阀高频响应特性：针对压缩机周期性压力波动特别优化，避免误动作同时能够快速响应

压缩机高压安全阀高压差适应能力：专为压缩机出口高压工况设计，适用压力等级可达Class 2500-4500

压缩机高压安全阀耐介质特性：

石油气压缩机：耐硫化氢腐蚀

工艺压缩机：耐各种工艺介质

空气压缩机：防结垢设计

稳定泄放能力：采用改良的阀瓣导向结构，确保泄压过程稳定无震荡

在线检测功能：部分型号配备测试杠杆，可在不停机情况下进行功能验证

压缩机高压安全阀典型应用：

天然气输送管线压缩机

石油炼化工艺压缩机

空气压缩机系统

制冷压缩机机组

特种气体压缩设备

压缩机高压安全阀技术参数示例（补充）

参数范围公称压力Class 600-4500适用温度-196℃至+550℃开启压力偏差≤±3%启闭压差≤15%连接方式RF/RJ法兰、SW焊接阀体材料碳钢、不锈钢、合金钢

Product Overview of Compressor High-Pressure Safety Valves

Compressor High-Pressure Safety Valves are critical overpressure protection devices in compressor systems, specifically designed to protect compressors  downstream equipment  damage caused by abnormal pressure conditions. When the compressor discharge pressure exceeds the predetermined set value, the valve instantly opens to relieve pressure  automatically recloses when normal pressure is restored, ensuring safe  stable operation of the compression system.

Key Features:

Precise Pressure Control: Accurate spring-loaded design ensures opening pressure deviation ≤±3%, meeting precise pressure protection requirements

High-Frequency Response: Specially optimized for compressor cyclic pressure fluctuations to prevent false actuation while ensuring rapid response

High-Pressure Differential Capability: Designed for compressor outlet high-pressure conditions, suitable for pressure classes up to Class 2500-4500

Media Resistance:

Gas compressors: H₂S corrosion resistance

Process compressors: Compatibility with various process media

Air compressors: Anti-fouling design

Stable Relief Performance: Improved disc guidance structure ensures stable, chatter-free pressure relief

Online Testing Function: Selected models equipped with test levers for functional verification without shutdown

Typical Applications:

Natural gas pipeline compressors

Petrochemical process compressors

Air compressor systems

Refrigeration compressor units

Special gas compression equipment

Technical Standards:

Design: API 526, ASME Section VIII

Testing: API 527 Seat Tightness

Sizing: API 520/521

Materials: NACE MR0175 compliant
