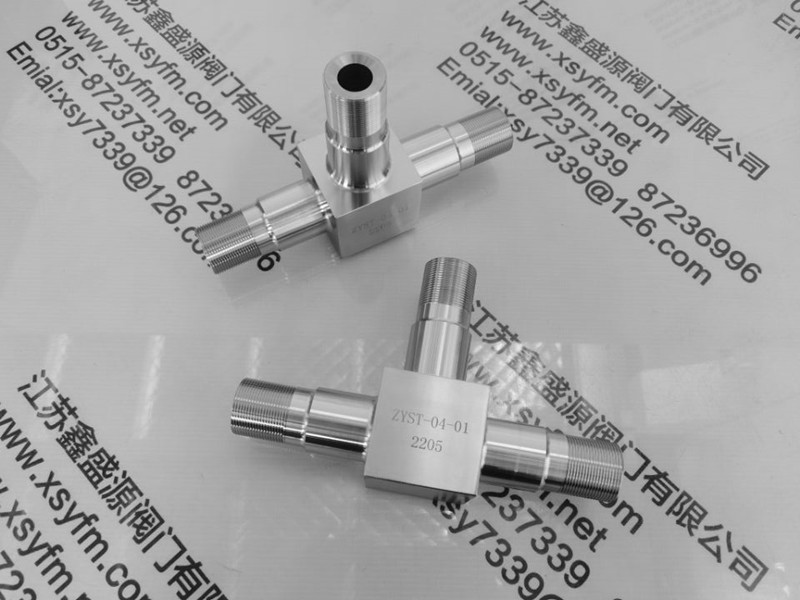

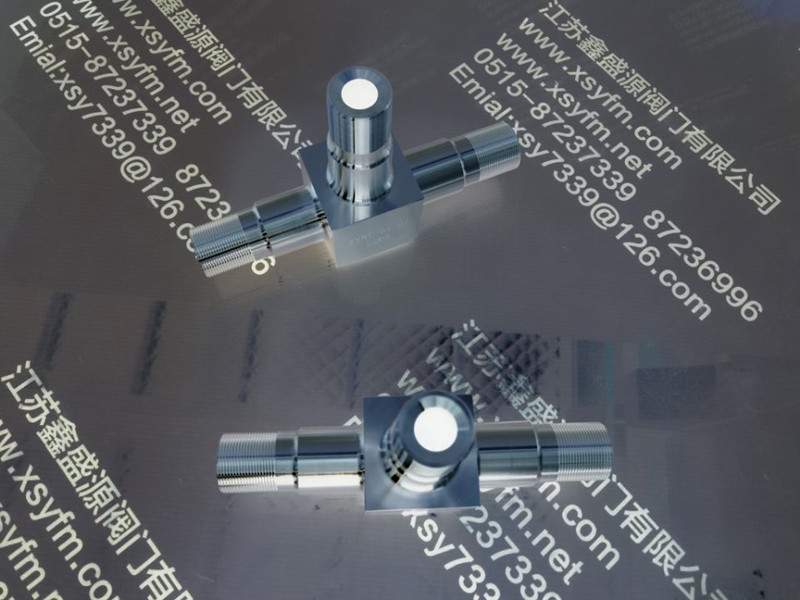

高压螺纹三通

高压螺纹三通（High-Pressure Threaded Tee）是一种用于高压流体系统分流或汇流的三向连接件，采用精密螺纹密封结构，确保在高压工况下的稳定性和安全性。广泛应用于石油、化工、船舶、能源及重型机械等领域的高压管路系统。

高压螺纹三通核心特点

结构设计主体采用锻造或精密铸造工艺，材质包括不锈钢（316/316L）、合金钢（如A105、F11）、黄铜等，具有高强度和高耐腐蚀性。

高压螺纹三通接口采用标准螺纹（如NPT、BSPT、Metric），部分型号配备密封锥面（Conical Seat）或O型圈槽（O-Ring Groove）以增强密封性。

高压螺纹三通三通分支角度通常为90°（T型）或45°（Y型），支持等径或异径（Reducer Tee）设计。

高压螺纹三通功能优势

高压耐受：设计压力可达100MPa以上，适用于极端工况（如深海、高温高压环境）。

零泄漏密封：螺纹配合金属/弹性密封件，确保长期使用无渗漏。

抗振动与冲击：刚性结构设计，适用于动态高压系统（如液压机械、船舶管路）。

高压螺纹三通典型应用

石油钻采设备的高压管路分流

化工反应釜的多路介质输送

船舶液压系统的支路控制

High-Pressure Threaded Tee Product Overview

The high-pressure threaded tee is a three-way connector designed for splitting merging fluid paths in high-pressure systems, featuring precision threaded sealing for reliability under extreme conditions. It is widely used in petroleum, chemical, marine, energy, heavy machinery industries.

Key Features

Structure Design

Forged precision-cast body materials (e.g., stainless steel 316/316L, alloy steel A105/F11, brass) ensure high strength corrosion resistance.

Threaded ports (NPT, BSPT, Metric) with optional conical seats O-ring grooves for enhanced sealing.

90° (T-type) 45° (Y-type) branch configurations, available in equal reduced sizes (Reducer Tee).

Functional Advantages

High-Pressure Resistance: Rated for pressures exceeding 100MPa, suitable for extreme environments (e.g., deep-sea, high-temperature/pressure).

Leak-proof Sealing: Threads combined with metal/elastomer seals guarantee long-term integrity.

Vibration & Shock Resistance: Robust design for dynamic systems (e.g., hydraulic machinery, marine pipelines).

Typical Applications

High-pressure flow division in oil drilling equipment

Multi-channel media transfer in chemical reactors

Branch control in marine hydraulic systems

注：术语可能因标准而异，如 "HP Threaded Tee" 或 "Tri-Clamp Tee"（卫生级应用），需明确标注压力等级（如PN420、Class 2500）。
