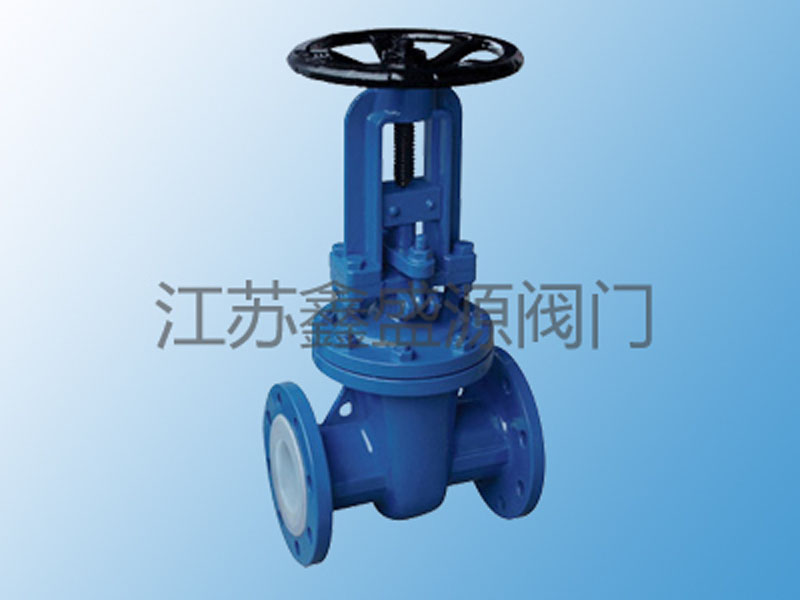

Z41F衬氟闸阀是常用的截断阀之一，主要用来接通或截断管路中的介质，不适用于调节介质流量。本产品结构采用全新设计，腔内所有零部件均采用聚四氟乙烯衬里结构，闸板采用带杆机构，解决了普通暗杆闸阀颗粒，纤维状介质沉积在螺杆槽内而引起的操作不便或卡死等现象，阀门安装位置不受任何限制。基本类型有Z41F型、Z45F型。41F型为明杆型，螺母的移动带动阀门的开关；Z45F型为暗杆型，手轮的移动带动阀门的开关。

Z41F衬氟闸阀技术参数：

   内衬材料：F4、F46、F3、F2、PFA、PVDF、FRPP、PE、PO
   连接形式：法兰连接
   适用温度：-25~180℃
   驱动装置：手动，电动，气动
   公称压力：PN1.0、PN1.6、PN2.5和CLASS150
   公称通径：DN15-DN250

Z41F衬氟闸阀标准参数：

Z41F衬氟闸阀

产品名称 Z41F 衬氟闸阀 Z41F Lined Fluoroplastic Gate Valve

型号含义 Z: 闸阀; 4: 法兰连接; 1: 明杆刚性楔式单闸板； F: 氟塑料密封 (或衬氟材质)。示例：Z41F46-16C 中，F46代表衬里材料为氟塑料（FEP），16代表公称压力1.6MPa，C代表阀体材料为铸钢（WCB）。 Model Code: Z: Gate Valve; 4: Flanged Connection; 1: Rising Stem & Solid Wedge; F: Fluoroplastic Lining/Seal. Example: In Z41F46-16C, F46 indicates FEP lining, 16 indicates PN16 pressure rating, C indicates Cast Steel (WCB) body。

Z41F 衬氟闸阀主要特点 1. 耐腐蚀性强：阀体、闸板、阀杆等与介质接触的表面衬有FEP(F46)、PCTFE(F3)等氟塑料，适用于各种强腐蚀性介质。 2. 密封可靠：密封副通常为FEP/FEP或其他低摩擦材料组合。填料常采用PTFE，密封性好且更换方便。 3. 双向流动：介质可从阀门两侧任意方向通过，适用于介质流向可能改变的管路。 4. 弹性闸板：一些型号采用弹性闸板，能自动补偿密封面的楔角偏差，密封效果更好。 5. 不用于节流：楔式闸阀不允许微量开启用作节流，以免高速介质冲蚀损坏密封面。 Main Features:  1. Excellent Corrosion Resistance: Components like body, gate,  stem in contact with the medium are lined with FEP(F46), PCTFE(F3), etc., suitable for various highly corrosive media。 2. Reliable Sealing: The sealing pair often uses FEP/FEP  other low-friction combinations. Packing typically uses PTFE for good sealing  easy maintenance。 3. Bidirectional Flow: Medium can pass through the valve  either side, suitable for pipelines  flow direction might change。 4. Flexible Gate: Some models use a flexible gate to automatically compensate for wedge angle deviations, ensuring better sealing。 5.  for Throttling: Should  be partially opened for throttling to prevent erosion of sealing surfaces by high-velocity medium。

Z41F 衬氟闸阀技术规范 公称通径 (Nominal Diameter): DN15 ~ DN500。 公称压力 (Nominal Pressure): 常见 PN1.0, PN1.6 MPa (约10-16 bar)，或其他压力等级如PN1.6-4.0Mpa。 适用温度 (Applicable Temperature): 通常约 -30°C ~ 150°C 或 -50°C ~ 150°C (具体取决于衬里材料)。 Z41F 衬氟闸阀适用介质 (Applicable Media): 各种强腐蚀性介质，如盐酸、硫酸、氢氟酸、王水、强碱、有机溶剂等。 阀体材质 (Body Material): 铸铁、铸钢(WCB)、不锈钢(CF8/304, CF8M/316) 等。 连接方式 (Connection Type): 法兰连接 (Flanged)。 设计制造标准: 参考 GB/T 12234, HG/T 3704 等。 Technical Specifications:  Nominal Diameter: DN15 ~ DN500。 Nominal Pressure: Common ratings PN1.0, PN1.6 MPa (approx. 10-16 bar),  other ratings like PN1.6-4.0Mpa。 Applicable Temperature: Generally -30°C ~ 150°C  -50°C ~ 150°C (depending on lining material)。 Applicable Media: Various highly corrosive media, such as hydrochloric acid, sulfuric acid, hydrofluoric acid, aqua regia, strong alkalis, organic solvents, etc.。 Body Material: Cast Iron, Cast Steel (WCB), Stainless Steel (CF8/304, CF8M/316), etc.。 Connection Type: Flanged。 Design & Manufacturing Standards: Refer to GB/T 12234, HG/T 3704, etc.。

Z41F 衬氟闸阀主要零件材料

下表列出了主要零件的典型材料（基于的零件材料表）：

零件名称 典型材料 (中文) Typical Material (English)

阀体 / 端盖 / 闸板 灰铸铁 (HT250); 铸钢 (WCB); 不锈钢 (CF8, CF8M) 等，并衬氟塑料 Cast Iron (HT250); Cast Steel (WCB); Stainless Steel (CF8, CF8M), etc., with fluoroplastic lining

阀杆 2Cr13; 1Cr18Ni9 等，部分包覆氟塑料 2Cr13; 1Cr18Ni9, etc., partially covered with fluoroplastic

衬里 / 阀座 PTFE (F4); PCTFE (F3); FEP (F46); PFA 等 PTFE (F4); PCTFE (F3); FEP (F46); PFA, etc.

填料 PTFE (F4) PTFE (F4)

Z41F 衬氟闸阀选型与使用注意

· 选型依据：根据实际工况的介质特性、浓度、温度、压力选择合适的阀体材质、衬里材料和压力等级。

· 使用注意：

  · 严禁用于节流：必须全开或全关，避免部分开启导致密封面冲蚀损坏。

  · 温度压力限定：确保工作温度和压力在阀门衬里材料的允许范围内。

  · 安装维护：安装前清洁管道，防止损坏衬里。定期检查填料等密封部位。

希望以上信息能帮到您。请注意，不同制造商的产品在压力等级、适用温度范围、结构长度和法兰标准等细节上可能存在差异。如需特定型号的精确尺寸数据或认证标准，建议直接咨询制造商或供应商。

Z41F Lined Fluoroplastic Gate Valve

1. Product Overview

The Z41F Lined Fluoroplastic Gate Valve is a flanged gate valve with a fluoroplastic lining (such as FEP/F46) on all wetted parts. It is specifically designed for handling highly corrosive media in pipeline systems, providing reliable shutoff functionality.

2. Detailed Specifications

Item English Details

Product Name Z41F Lined Fluoroplastic Gate Valve

Model Code Z: Gate Valve; 4: Flanged; 1: Rising Stem & Solid Wedge; F: Fluoroplastic Lining

Pressure Rating PN1.0, PN1.6 MPa (approx. 10-16 bar)  other ratings like PN1.6-4.0Mpa

Nominal Diameter DN15 to DN500

Body Material Cast Iron, Cast Steel (WCB), Stainless Steel (CF8/304, CF8M/316)

Lining Material PTFE (F4), PCTFE (F3), FEP (F46), PFA

Applicable Media Highly corrosive media: hydrochloric acid, sulfuric acid, hydrofluoric acid, aqua regia, strong alkalis, organic solvents

Working Temperature Typically -30°C to 150°C (depending on lining material)

Drive Method Manual (Handwheel)

Connection Type Flanged

Main Features 1. Excellent corrosion resistance due to full fluoroplastic lining 2. Reliable sealing with low-friction materials 3. Bidirectional flow capability 4. Flexible gate design available for better sealing 5.  for throttling - must be fully open  closed

3. Technical Standards

· Design & Manufacture: Refer to GB/T 12234, HG/T 3704

· Face-to-Face Dimensions: According to relevant national standards

· Test  Inspection: API 598  equivalent

4. Main Components Material

Component Typical Material

Body/Cover/Gate Cast Iron (HT250); Cast Steel (WCB); Stainless Steel (CF8, CF8M) - with fluoroplastic lining

Stem 2Cr13; 1Cr18Ni9 - with fluoroplastic covering

Lining/Seat PTFE (F4); PCTFE (F3); FEP (F46); PFA

Packing PTFE (F4)

5. Selection & Application Notes

· Selection Basis: Choose appropriate body material, lining material,  pressure rating based on media characteristics, concentration, temperature,  pressure.

· Installation & Maintenance: Clean pipelines before installation to prevent lining damage. Perform regular maintenance  check packing for leaks. The valve must be used fully open  fully closed - never for throttling.
