ZJHP气动调节阀

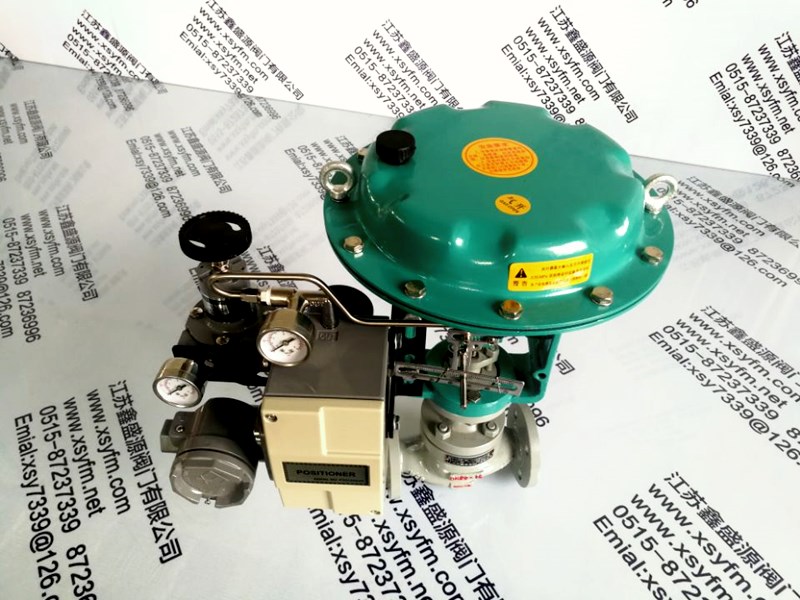

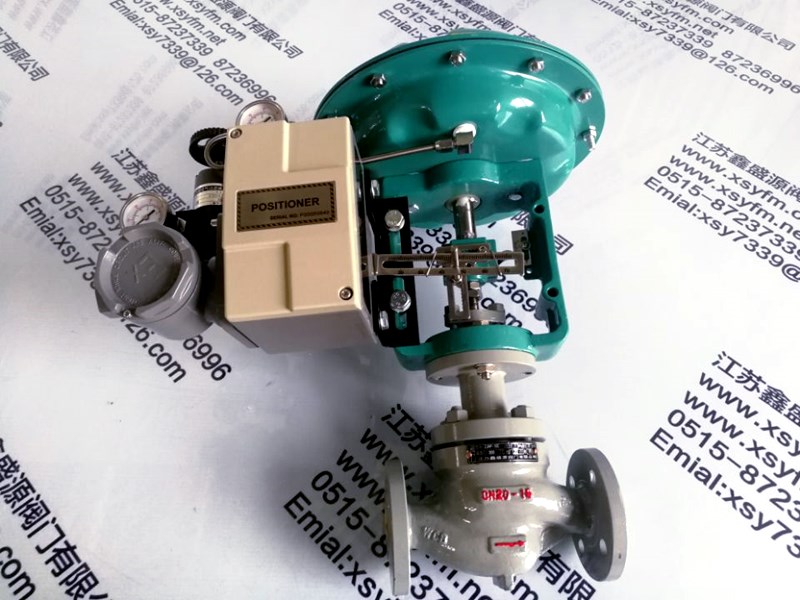

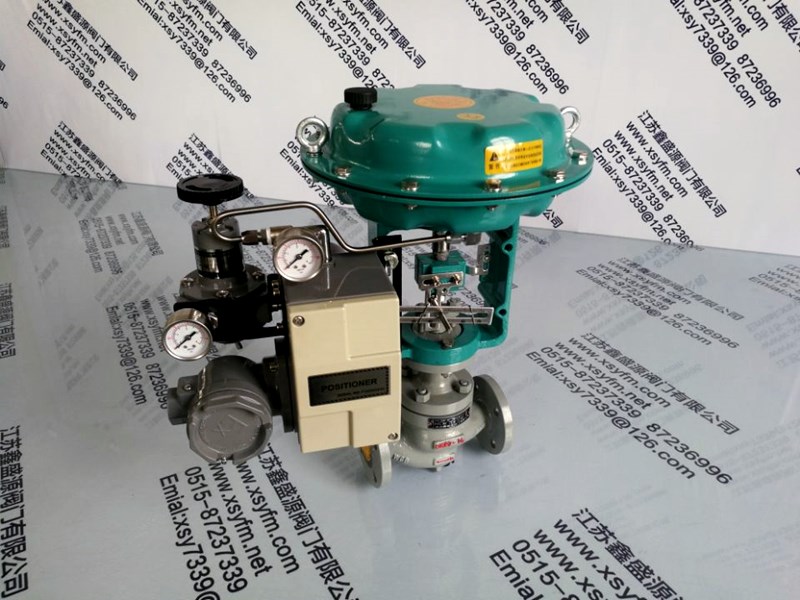

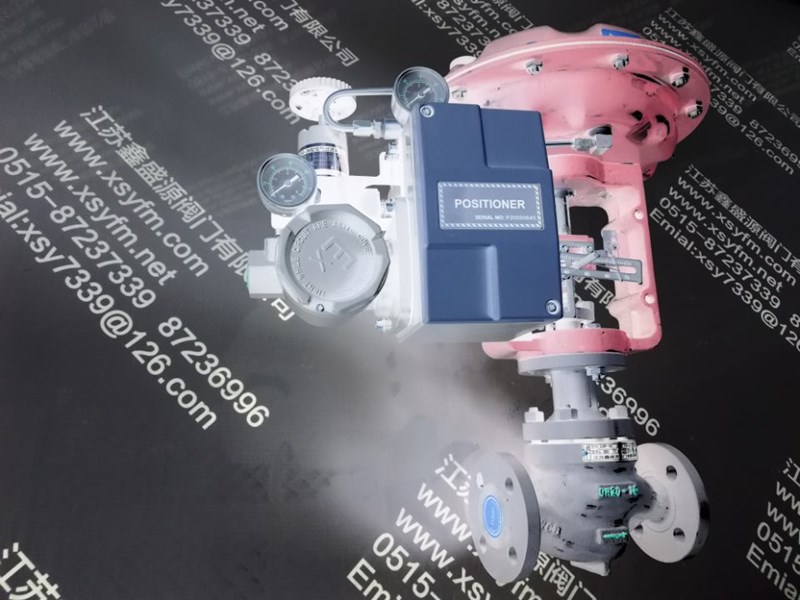

ZJHP气动调节阀是一种以压缩空气为动力源的自动化控制装置，主要用于准确调节气体、液体、蒸汽等介质的压力、流量、温度及液位参数。它由多弹簧气动薄膜执行机构与低流阻单座阀体组合构成，具有结构紧凑、重量轻、动作灵敏、流体通道呈S流线型、压降损失小、阀容量大、流量特性准确、拆装方便等特点。该阀门广泛应用于石油化工、电力、制药等工业自动化控制系统，特别适用于允许泄漏量小且阀前后压差不大的场合。产品有标准型、调节切断型、波纹管密封型、夹套保温型等多种品种，公称压力等级有PN16、40、64，公称通径范围DN20～300，适用流体温度范围-200℃至+560℃5。

ZJHP气动调节阀主要性能参数

公称通径：DN20～300

公称压力：PN16、40、64

介质温度：-200℃～+560℃

ZJHP气动调节阀泄漏量标准：Ⅳ级（金属阀芯）、Ⅵ级（软密封结构）

ZJHP气动调节阀流量特性：线性、等百分比

可调比：50:1

ZJHP气动调节阀阀体材质：HT200、ZG230-450、ZG1Cr18Ni9Ti等

ZJHP气动调节阀连接方式：法兰式

适用介质：气体、液体、蒸汽等

ZJHP气动调节阀Product Overview

ZJHP Pneumatic Control Valve is an automated control device powered by compressed air, mainly used for precise regulation of pressure, flow, temperature,  liquid level of media such as gas, liquid,  steam. It consists of a multi-spring pneumatic diaphragm actuator  a low-flow-resistance single-seat valve body, featuring compact structure, light weight, sensitive operation, S-shaped fluid channel, low pressure drop, high valve capacity, accurate flow characteristics,  convenient installation  disassembly. This valve is widely applied in industrial automatic control systems in petrochemical, power, pharmaceutical,  other industries, especially suitable for applications requiring small leakage   the pressure difference before  after the valve is  large. The product is available in standard, regulating shut-off, bellows sealed,  jacketed types, with nominal pressure ratings of PN16, 40, 64, nominal diameter range DN20～300,  applicable fluid temperature range  -200℃ to +560℃.5

Main Performance Parameters

Nominal Diameter: DN20～300

Nominal Pressure: PN16, 40, 64

Medium Temperature: -200℃～+560℃

Leakage Standard: Class IV (metal seat), Class VI (soft seal)

Flow Characteristic: Linear, Equal Percentage

Adjustable Ratio: 50:1

Valve Body Material: HT200, ZG230-450, ZG1Cr18Ni9Ti, etc.

Connection Type: Flanged

Applicable Media: Gas, liquid, steam, etc.
