CNG加气枪头型号：

      AGA/CGA NGV1-94 CMV08

CNG加气枪头特点：

      1. 寿命长：双向对准导向系统稳定使用寿命更长；
      2. 连接寿命>10万次
      3. 锁定系统：防止高压喷头连接到低压喷头或低压容器；
      4. 自动化操作：单手自动操作，推入即可连接；
      5. 锁紧球锁定稳定可靠性；
      6. 独立套筒保护手与金属接触；
      7. 止回阀装置让抢头未连接时断开；

CNG加气枪头参数：

      1. 内径：7.5mm
      2. 工作压力：200bar
      3. 工作温度：-40度到85度
      4. 流量：6500Nm3/h

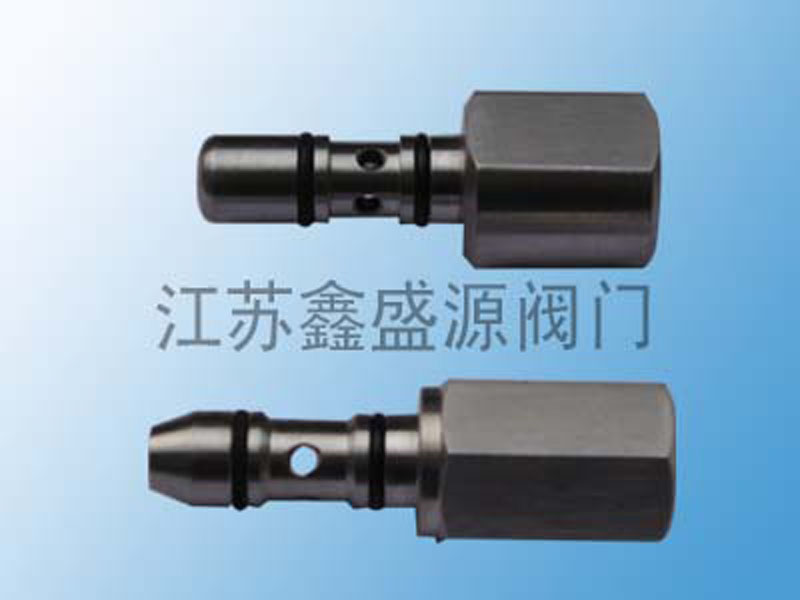

CNG加气枪头

CNG加气枪头是压缩天然气（CNG）加气站与CNG车辆（或储气设备）之间的关键连接接口装置。其核心功能是提供一种快速、安全、可靠且密封性良好的连接，以便将高压CNG（通常工作压力为20MPa或25MPa）从加气机快速、无损地加注到车辆的车载气瓶中。

CNG加气枪头主要特点：

CNG加气枪头高压密封设计： 专为高压工况设计，采用高性能密封圈（如尼龙或聚氨酯材料）和精密的机械结构，确保在加注过程中实现零泄漏，保障操作安全。

CNG加气枪头快速连接与断开： 通常采用推拉式或旋转式自锁结构（如“卡爪”设计），操作简便。连接时只需将枪头插入车辆 receptacle（插座），机构会自动锁紧并形成密封；加注完成后，通过手动或气动解锁即可轻松断开。

CNG加气枪头安全联锁功能： 内置安全机制，确保枪头在完全连接并锁紧、达到密封状态后，高压气体才能导通。同时，在带压状态下，锁紧机构无法被意外打开，防止“飞枪”危险。

过流保护： 许多设计包含内置过流保护阀（Excess Flow Valve）。万一软管破裂或连接意外断开，该阀会迅速自动切断气流，防止大量气体泄漏。

CNG加气枪头材料与耐用性： 主要部件采用高强度不锈钢和耐用合金材料制造，耐腐蚀、耐磨损，使用寿命长。

符合标准： 设计与制造需符合严格的国家和国际标准（如ISO 14469、ISO 17268、GB/T 19237等），以确保与不同车型的加气插座的互换性和安全性。

CNG加气枪头人性化设计： 通常配备轻质材料或平衡器以减轻操作重量，降低操作人员的劳动强度。

CNG加气枪头应用领域：

主要用于CNG加气站（快充站、子站、母站）为CNG公交车、出租车、卡车等车辆进行加气作业。

CNG加气枪头产品名称：CNG Dispensing Nozzle 或 CNG Filling Nozzle

The CNG Dispensing Nozzle is a critical connection interface device between a Compressed Natural Gas (CNG) refueling station  a CNG vehicle ( storage equipment). Its core function is to provide a fast, safe, reliable,  leak-tight connection for transferring high-pressure CNG (typically at working pressures of 20 MPa  25 MPa)  the dispenser into the vehicle's onboard storage cylinders quickly  without loss.

Key Features:

High-Pressure Sealing Design: Engineered for high-pressure service, it utilizes high-performance seals (e.g., made  Nylon  Polyurethane)  precision mechanics to ensure zero leakage during refueling, guaranteeing operational safety.

Quick Connect/Disconnect: It typically features a push-to-connect  rotary bayonet-style self-locking mechanism (e.g., a "claw" design) for easy operation. To connect, the nozzle is inserted into the vehicle's receptacle,  it locks automatically  forms a seal. After refueling, it can be easily disconnected by manual  pneumatic unlocking.

Safety Interlock: An integrated safety mechanism ensures that high-pressure gas flow is only enabled once the nozzle is fully inserted, locked,  sealed. Conversely, the locking mechanism cannot be accidentally opened while the system is pressurized, preventing dangerous "whip-off" incidents.

Excess Flow Protection: Many designs include a built-in Excess Flow Valve. In the event of a hose rupture  accidental disconnection, this valve automatically  rapidly shuts off the gas flow to prevent a major release.

Materials & Durability: Key components are constructed  high-strength stainless steel  durable alloys, offering excellent resistance to corrosion  wear, resulting in a long service life.

Standards Compliance: Design  manufacturing comply with stringent national  international standards (e.g., ISO 14469, ISO 17268, GB/T 19237) to ensure interoperability with different vehicle receptacles  overall safety.

Ergonomic Design: Often incorporates lightweight materials  is used with a counterbalance system to reduce weight  operator fatigue.

Applications:

Primarily used at CNG refueling stations (fast-fill stations, daughter stations, mother stations) for refueling CNG buses, taxis, trucks,  other vehicles.
